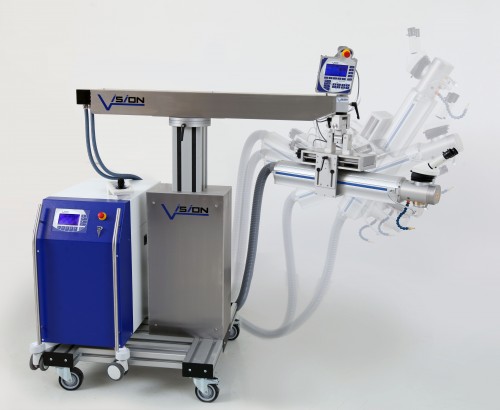

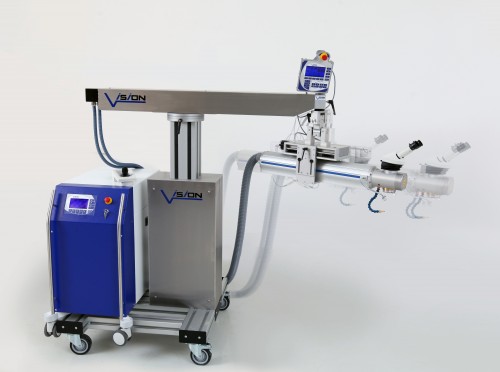

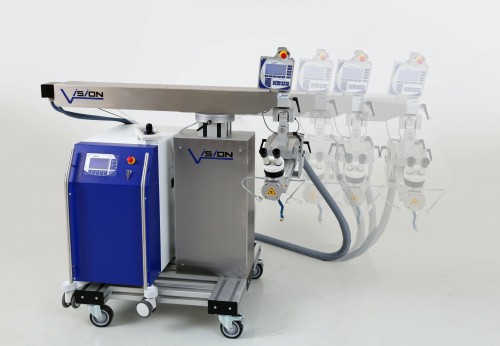

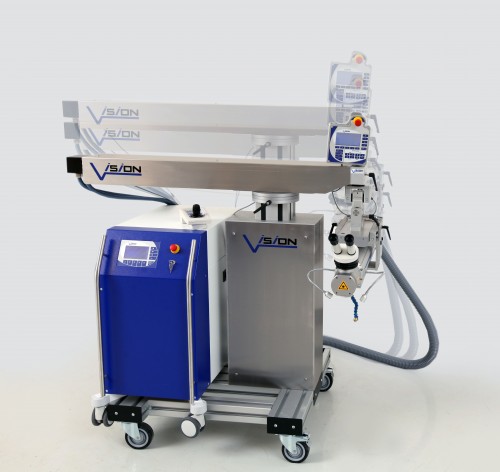

LWI V MobileFlexx

•
  ×Close

  Yag 200

  Close
•
  ×Close

  Yag 150

  Close
•
  ×Close

  Yag 120

  Close
•
  ×Close

  Teach in



  Enables the handling of complicated geometries in four axis without complex programming. A small number of support points are hit once on the contour of the work piece in advance. The user can subsequently move the programmed welding line forward and backwards using the joystick and can also shift its position by offsetting the start point.

  Close
•
  ×Close

  Schutzgas



  Programmable shielding gas post-flooding

  In order to eliminate the oxidation of the welded joint directly after it has been welded, the times during which the shielding gas ist still conducted on the welded joint following the welding can be individually set.

  Close
•
  ×Close

  PWM



  In the lower power range, which depends upon high stability, traditional lasers are inclinined toward a low „pulse to pulse stability“ and thus to a non-uniform welding result. The Pulse Width Modulation (PWM) gives a vastly more fine and stable coordination, as the internal energy supply here works in the area of the optimal output.

  Close
•
  ×Close

  Pulse shaping



  Free pulse shaping enables the setting and saving of all possible variations in the pulse process. Materials with different thermal coefficients of expansion thus show a clearly better welding behaviour - your laser´s area of application thus expands.

  Close
•
  ×Close

  pulse distance synchronization



  Provides a constant pulse overlapping through the dynamic synchronization of the pulse trigger with the axis movement. PDS ensures replicable welding results with different speeds and consistent, homogenous weld joints in all movement situations. Therefore, a higher operating speed can be reached.

  Close
•
  ×Close

  on axis light



  This allows you to see into deep crevices or holes which would be in darkness if lateral illumination were used. The illumination comes alongside the optical beam and always illuminates accurately from above.

  Close
•
  ×Close

  On axis gas

  On-axis shielding gas supply



  A reliable on-axis shielding gas supply enables perfect welding even with highly-sensitive materials, such as titanium, for example.

  The welded joint is always flooded with shielding gas under 90 degrees. This prevents the sort of shadow effects and swirling which occurs when a lateral gas supply is used.

  Close
•
  ×Close

  FSS 300

  Close
•
  ×Close

  FSS 150

  Close
•
  ×Close

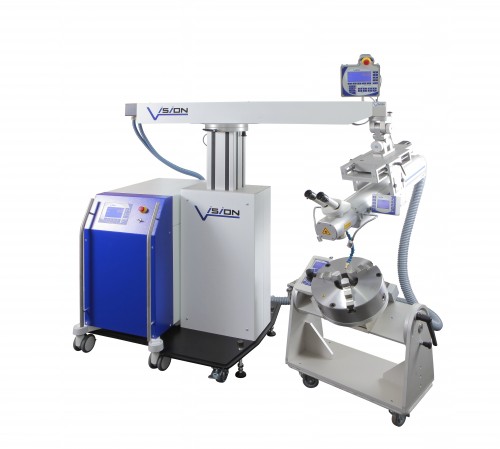

  Rotation Axis



  Specially developed turning units increase the user value of your workstation. They incorporate all functions of CAN-Step control, available at the touch of a button, including pulse synchronization and „Teach in“ programming.

  Additional features: • Swivel-mounted • Free implementation up to Ø40 mm • different chuck types, chucking range up to Ø 160 mm.

  Close
•
  ×Close

  Display

  Large display with backlighting



  The large backlit display provides the user with a direct view of all the important operating parameters. Adjustment limits are visualized.

  The adjustment of the parameters themselves takes place via the work chamber´s control elements.

  Close
•
  ×Close

  Can Step



  Precisely controls axis movements. This extends manual welding by its sophisticated automatic and programable functions. Touchscreen and Joystick terminals directly in your workspace provide a unique, simple control concept. Thanks to the completely integrated hardware, a separate computer is not needed.



  Close
•
  ×Close

  Booster



  Booster technology for long lamp lifespan and heightened pulse stability The booster enables you to further raise the „pulse to pulse stability“ and to lengthen the lifespan of the flash lamp. Shortly before the shoot, the simmer power is automatically increased, thus stabilizing the plasma in the lamp and increasing the electrode temperature. This leads to a substanitially more stable energy output of the laser, especially with low energy.

  Close
•
  ×Close

  Beamtuning



  Beam Tuning Set

  The innovative Beam Tuning Set combined with booster technology guarantees a stable output even with very low pulse energies.

  This is particulary beneficial when it comes to welding extremely small parts. The spot size can be reduced to 50 μm.

  This feature is available as either a fixed installation or a manually connectable option.



  Close
•
  ×Close

  3Point



  You can process circular type contours by using the PCD function with the XY axis. The circular path is precisely defined through the teaching of only three support points. You do not need to know the center or the diameter; the position on the work piece is optional. You can move along the programmed course either forward or backward by using the joystick.

  Close

Specification

• 120W
  Nd:YAG
• 150W
  Nd:YAG
• 200W
  Nd:YAG
• 300W
  Nd:YAG
• 150W
  FSS
• 300W
  FSS
